In addition to global key mapping, which defines a key mapping table for all Views and ViewDAQs, users can specify a local key mapping table for each individual graph.
KeyMapping a single graphic display applies to all VIEW clients and all ViewDAQ. KeyMapping a graphic display is implemented from the KeyMapping section of "Set Graph Parameters" in DRAW or DrawDAQ .
1. Tool→KeyMapping：KeyMapping Configuration

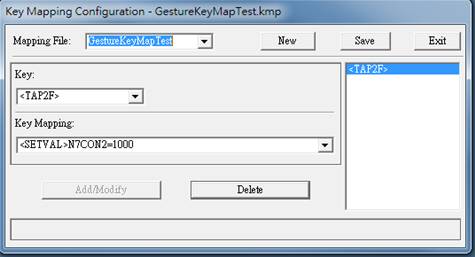

10.12.5.2.1 Local Mode KeyMapping window
2. In Draw or DrawDAQ, initiate the "Set Graph Parameters" dialog box.
3. In the KeyMapping File field, select or enter a key mapping file. To create or modify key mapping file, click the Edit button next to the field.

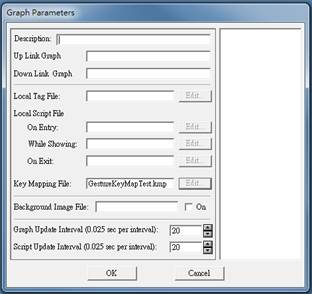

Figure : 10.12.5.2.2 Local Mode Set Graph Parameters window
4. Save and Exit.
5. Download the graph.
If a local key mapping table is defined, both local and global key mapping will be performed. To turn local or global key mapping functions on and off for each individual View/ViewDAQ, set %DKEYMAPFILE (local) or %DKEYMAPPING (global) to 0/1.
See also KeyMappingLocal configuration, 11.4.1 Key Mapping Global
